Expamet 75 x 200mm Masonry (built-in) Single Piece Joist Hanger Delivery:

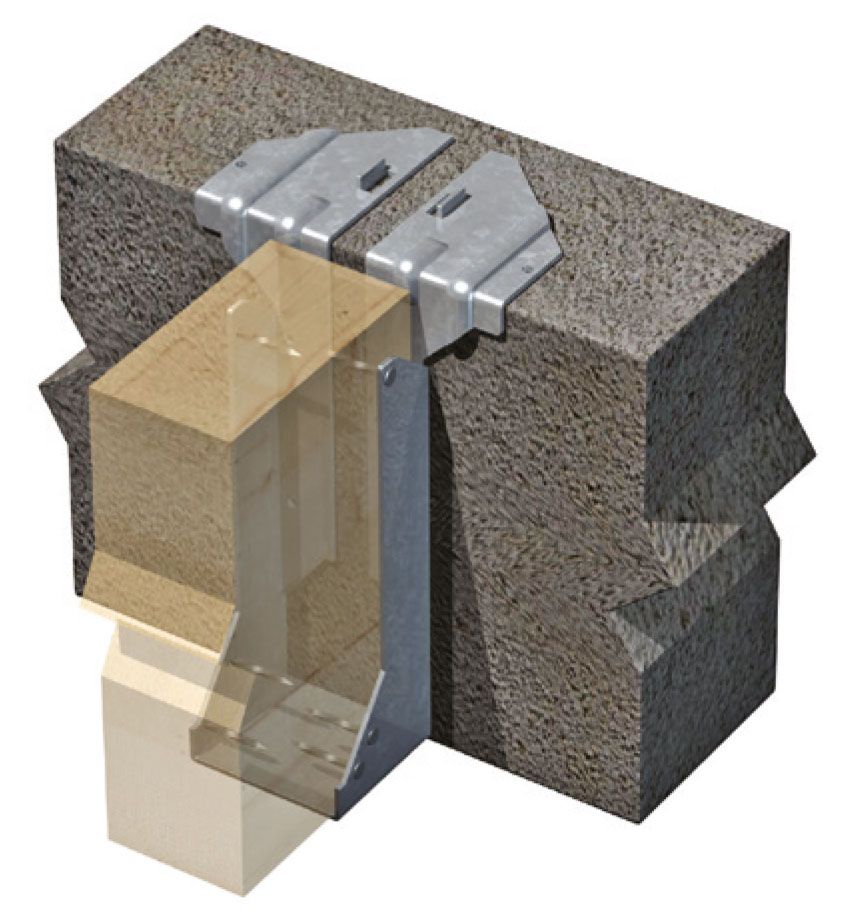

The BAT S.P.H. Joist Hanger is a single piece timber to masonry for building into the inner leaf of external cavity walls and internal walls.
Features & Benefits
Single-piece, non-welded construction Wider masonry flange to increase loadings on masonry of compressive strength 2.8N/mm² and greater Manufactured from 2mm thick pre-galvanised mild steel to BS EN 10346: 2015, DX51D+Z600 75mm load bearing surfaces All hangers 150mm deep and over are manufactured 10mm less to allow for notching and regularisation of timber joists Gusset nail holes are non-coaxial Product Specs: Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
Sales Unit EA Weight 0.56Kg Length 200mm Width 75mm Gauge 2.0mm Use Internal Fire Rating Euroclass A1 Type Masonry (built-in) Single Piece Joist Hanger Finish 600g/m² Galvanised Coating Plaster/Render/Joist Depth 75mm Joist Width Brand Expamet Material Galvanised Mild Steel DX51D+Z600 to EN10346:2015
